Liquid Crystal Magna

$19,494.00

The largest LCD 3D printer worldwide.

Enabling custom mass manufacture and large component printing. From Dentistry to product design and manufacture, the LC Magna’s 23.8” LCD screen and 510 x 280 x 350mm build volume manages larger projects with speed and accuracy delivering print results and geometry previously impossible using traditional manufacturing techniques.

SKU: 3D-PRINTER-LCMAGNA Categories: , , ,

Largest LCD 3D printer

Increase throughput with a build volume of  20.1 x 11 x 13.8″

Rapid printing speeds

13.3mm per hour enabling large volumes of parts to be printed quickly.

Printed at 100μm

Highly accurate

4K LCD screen ensuring accuracy across the entire platform

Easy and simple workflow

1. CAD files are loaded into Photocentric Studio and prepared for printing with a few clicks.

2. Simple printer set up to convert files into physical dental models’ layer by layer.

3. Printed parts are washed removing excess resin.

4. Parts are cured and ready for use.

Large scale production at a fraction of the cost with high quality materials

Magna’s large build volume and high-resolution screen delivers the optimal large format printing experience. Our 3D printing resin portfolio has been optimised and because we manufacture everything from the building-blocks upwards, we can provide the most cost-effective model costs.





$0.57
Cost per electronic housings (375 parts in total – 3 parts per housing)
Accuracy- 100μm (Over 90% of scanned data within +/- µm)
Print Time- 4 hrs
Weight- 1.01kg
Material- Daylight Magna Hard | $357 per 5kg
Download TDS | Buy Now





$2.28
Avg cost per attachment (67 parts on platform. Full platform cost £109.20)
Accuracy- 100μm (Over 90% of scanned data within +/- µm)
Print Time- 9 hrs 30 mins
Weight- 1.82kg (19% supports)
Material- Daylight Magna Durable | $420 per 5kg
Download TDS | Buy Now

$1.43
Cost per dental model (48 per platform)
Accuracy- 100μm (Over 90% of scanned data within +/- µm)
Print Time- 90 minutes
Weight- 576g (12g per arch)
Material- Daylight Magna Dental | $420 per 5kg
Download TDS | Buy Now

$1.04
Cost per glasses (36 per platform)
Accuracy- 100μm (Over 90% of scanned data within +/- µm)
Print Time- 3 hours
Weight- 500g (13.8g per glasses)
Material- Daylight Magna Hard | $357 per 5kg
Download TDS | Buy Now



$210
Cost of motorbike engine parts
Accuracy- 100μm (Over 90% of scanned data within +/- µm)
Print Time- 15 hrs
Weight- 3kg
Material- Daylight Magna High Tensile | $420 per 5kg
Download TDS | Buy Now



$0.21
Cost per pen
Accuracy- 100μm (Over 90% of scanned data within +/- µm)
Print Time- 12 hrs
Weight- 2kg (3g per pen)
Material- Daylight Magna Concept | $420 per 5kg
Download TDS | Buy Now



$32.84
Cost of full platform
Accuracy- 100μm (Over 90% of scanned data within +/- µm)
Print Time- 9 hrs 10 mins
Weight- 391g
Material- Daylight Magna Translucent | $420 per 5kg
Download TDS | Buy Now



$1.75
Cost per model
Accuracy- 100μm (Over 90% of scanned data within +/- µm)
Print Time- 18 hrs
Weight- 750g
Material- Daylight Magna Concept | $420 per 5kg
Download TDS | Buy Now

Professional, reliable plug-n-play technology

Built to deliver consistent results over time LC Magna is manufactured in the UK using the highest engineered materials possible, setting new standards in printer quality and reliability.

1) Quick Release Clamps

Designed to enhance user experience the vat clamps make it easier to lock the resin vat in place.

2) Vat

Built in handles, pouring spouts and etched depth gauge enhance user experience and reduce wastage.

3) 4K Ultra High Definition Display

Delivers accuracy previously unachievable with large format (SLA) print solutions. xy pixel pitch of 137 micron will deliver higher resolution due to benefits of anti-aliasing. Scanned accuracy of +/- 100 microns can be obtained across the bed.

4) Large Build Volume

20.1 x 11 x 13.8″ is the largest commercially available LCD 3D printer. LC Magna suits a variety of applications and different industries.

5) Peel Release Technology

Our patented blow-peel technology all but eliminates the forces that come into play with large build volumes and has been stress tested with the most demanding 15Kg solid builds.

6) GUI

The 7″ touch screen interactive interface gives full functionality and real time user information on print status and function. Network/Wi-Fi connectivity built in.

Reviews

    Be the first to review “Liquid Crystal Magna”

    Your email address will not be published. Required fields are marked *

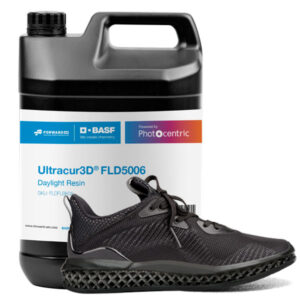

    Materials
    Post Processing

    Showing all 3 results

    Ancillaries

    Learn how LC Magna is changing the way companies operate with 3D Printing.

    Smilelign & S4S
    Aligner Manufacturer

    Smilelign and S4S are major players in the dental aligners in the UK. They had tried almost every manufacturer of 3D printers to meet their requirements for reliability before deciding upon Magna.

    Opro
    Mouthguard Manufacturer

    Opro are the world’s largest custom mouthguard manufacturer, they needed to digitise their model manufacturing process so they switched over to Magna’s increased production and took cost out.

    Xkelet
    Orthotic Manufacturer

    The powerful alliance of Xkelet and Photocentric has seen the creation of an advanced solution to traditional orthotics; one which is revolutionising the treatment of damaged bones

    Bridge Dental Laboratory
    Dental Laboratory

    Bridge Dental were experiencing a rapid growth in demand for their clear aligners. In late 2019 they purchased their first magna and began repetable mass manufacture of models.

    As part of our on-going operation at eXceed, we routinely test printed models from new 3D printers to ensure compatibility with our aligner-design process. We have recently tested 3D prints produced by the Photocentric Magna and were thoroughly impressed with their accuracy and quality, when measured against our standard calibration models. The Magna models ranked very high amongst all printed 3D arches we have ever experimented with.

    Nir Danai

    Sales & Marketing, eXceed
