UV Materials
Making plastic with ultraviolet
Select your printer type below
UV LC Dental
UV DLP
UV Laser
UV LCD
UV 355
UV LCD
Compatible with UV LCD printers such as Anycubic Photon, Wanhao D7, Phrozen Shuffle, Sparkmaker, Kudo Bean
Resin Types:
Firm, Flexible, Hard
UV LCD Firm

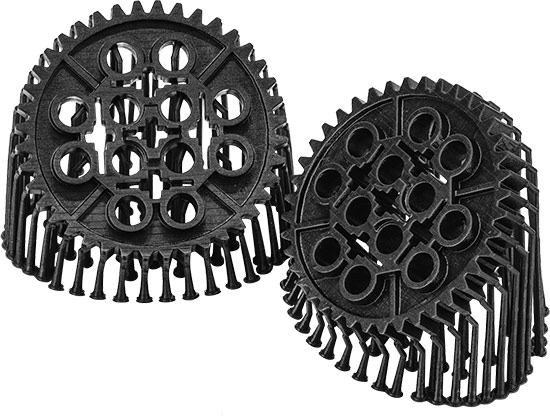

Our UV LCD Firm resin creates parts that hold their shape while also being able to bend and flex slightly without snapping. Resin delivers mechanical properties similar to polypropylene.
Key Features:
- Pliable
- Quick curing
- High accuracy
Industry:
General
Compatible Printers:
Compatible with UV LCD printers such as Anycubic Photon, Wanhao D7, Phrozen Shuffle, Sparkmaker, Kudo Bean
Available in 1kg bottles
$77
Resin Properties
Score out of 100 when compared to other resins from our range
Hover over the properties to understand their meaning.
Tensile Strength
26 MPa
Elongation
60%
Young's Modulus
700 MPa
Accuracy
UV LCD Flexible

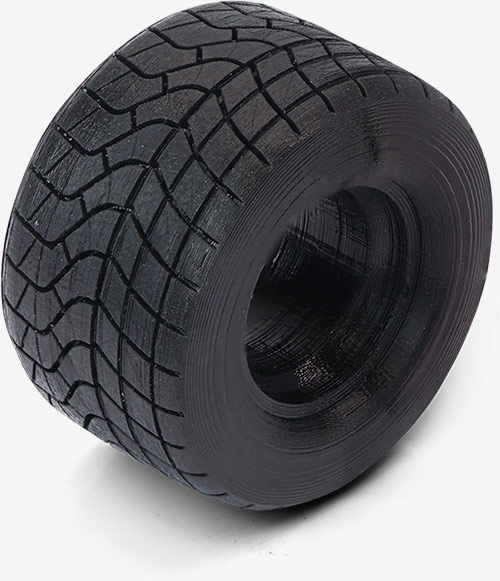

Our UV LCD Flexible resin produces soft, flexible parts. Objects can be stretched without snapping or breaking. Lattice or hollow structures can be squashed and will return to their original shape afterwards.
Key Features:
- Flexibility
- Easy to print
- Smooth surface finish
Industry:
Prototyping
Compatible Printers:
Compatible with UV LCD printers such as Anycubic Photon, Wanhao D7, Phrozen Shuffle, Sparkmaker, Kudo Bean
Available in 1kg bottles
$77
Resin Properties
Score out of 100 when compared to other resins from our range
Hover over the properties to understand their meaning.
Tensile Strength
4.9 MPa
Elongation
60%
Accuracy
UV LCD Hard
Our UV LCD hard resin delivers crisp details, high stiffness and high hardness. Parts will not deform when pressure is applied.
Key Features:
- Durable
- Rigid and strong
- High print accuracy
Industry:
Prototyping, Engineering
Compatible Printers:
Compatible with UV LCD printers such as Anycubic Photon, Wanhao D7, Phrozen Shuffle, Sparkmaker, Kudo Bean
Available in 1kg bottles
$77
Resin Properties
Score out of 100 when compared to other resins from our range
Hover over the properties to understand their meaning.
Tensile Strength
35 MPa
Elongation
<1.5%
Young’s Modulus
2000 MPa
Accuracy
Materials Comparison
Score out of 100 when compared to other resins from our range
Resin
Tensile Strength
Elongation
Young’s Modulus
Accuracy
UV LCD Firm
UV LCD Flexible
UV LCD Hard
Glossary of Key Terms
Tensile strength: Ability for an object to withstand pulling (tensile) force. Measured in units of force per cross-sectional area.
% elongation: How much an object can be stretched from its original shape.
Young’s Modulus: How much force is needed to stretch an object.
Flexural Strength: Ability to resist deformation under load.
Flexural Modulus: Measurement of an objects resistance to bend when force is applied (bend modulus).
HDT: Temperature at which a plastic deforms under heat.
