Our Unique 3D Printing Technology

Inventors of LCD 3D Printing

3D printing technology has come a long way since the initial days of rapid prototyping back in the 80s, and Photocentric are leading the way in 3D innovation, through our patented LCD printing technology.

LCD is a quicker and more cost-effective way for businesses to mass produce.

What is 3D Printing?

In simple terms, 3D printing is the process of creating a three-dimensional solid object from a digital file.

3D printing or Additive Manufacturing, allows 3D printed objects objects to be built up via successive material layers, until the desired shape is formed.

The individual layers are finely sliced cross sections of the overall object, and complex shapes can be created quickly and efficiently.

Due to the additive manufacturing process, less materials are used than the traditional methods, as is the opposite of subtractive manufacturing, where objects are hollowed out of a block of material.

To appreciate the benefits of our patented LCD print technology, it is important to understand the differences between the other 3D printing technology methods.

LCD

The concept we invented. Using an LCD screen as a light source, an entire layer is flashed at once, rather than one single point. LCD printing is a quicker alternative to other methods.

Our LCD 3D printing technology is enabling customers to create, cast and customise new products at a rate previously unimaginable.

SLA/Laser

Invented in the 1980s, SLA was the first 3D printing technology in the world. SLA uses a laser to cure liquid resin into hardened plastic, via a process called photopolymerization.

Popular for their detailed output and ability to produce highly accurate parts, they can be time consuming compared to LCD printing.

FDM

FDM followed shortly after SLA and is the term for a form of 3D printing where parts are produced layer by layer, with this process, the resolution of the part is determined by the extruder nozzle.

This method can lead to voids and visible differences between each layer and lacks the accuracy of the LCD printing technique

DLP

Similar to LCD technology, DLP projectors create an image of an entire layer. However, the techniques differ as DLP works by shining light through a lens to a DMD, which must then direct the light to the bottom of the resin tank.

The hardware involved is much more costly than LCD. Bulbs need replacing and the print quality is less defined.

LCD Printing explained

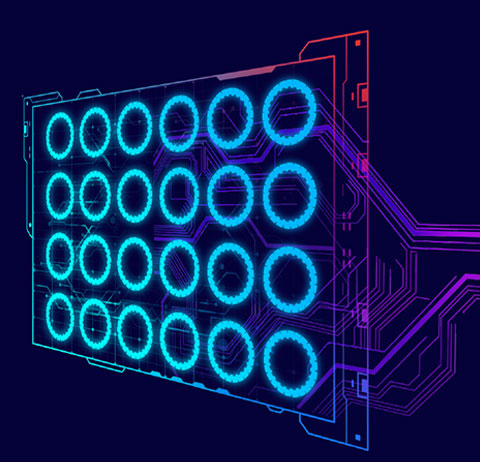

1) LCD light source

Photocentric’s LCD printers use an array of LCDs as a light source, shining parallelly direct on to the build area. As an entire layer is flashed at once, rather than one single point, LCD printing is a quicker alternative to other methods.

2) Slice image on screen

The LCD screen only lets the light enter where it is to be cured for the finished part. This method simplifies the process and removes the need for other materials, such as mirrors or galvanometers.

3) Daylight resin cures

LCD 3D printers use our unique daylight liquid resin which instantly hardens into plastic as it is exposed to LED light via an LCD screen. Powerful LCD panels shine lights via LEDs at the model, the LCD panel then blocks off areas that are not to be solidified.

4) Printing by layers

Photocentric printers produce “bottom-up” print, where the object being printed is pulled out of the resin and returns to one layer higher than the previous after each layer is cured. The process is repeated layer by layer until the shape is built.

Advantages of LCD 3D Printers

Increased Accuracy

Prints are more accurate, reducing the costs of reprints and print fails.

Faster Printing

LCD printing is a far quicker alternative as complete layers are printed at once.

Cost Effective

LCD screens offer the most cost effective and reliable device on the market.

Longer Product Life

LCD screens last longer than lasers or bulbs used in other 3D printers.

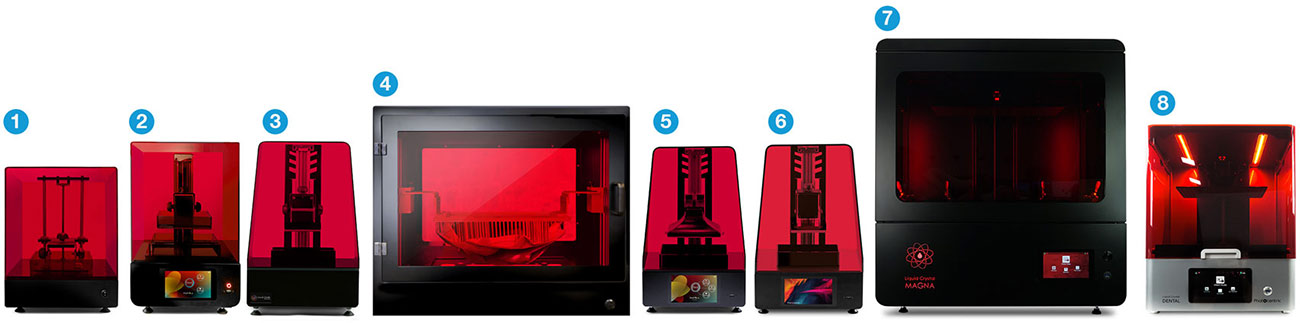

Evolution of our 3D Printers

Printer Name

Year Released

LCD Screen

Build Volume

1) LC10*

2) LCHR*

3) LC Precision*

4) LC Pro*

5) LC HR2*

6) LC Precision 1.5 *

7) LC Magna

8) LC Dental

2016

2017

2017

2017

2018

2018

2019

2020

10″- 1920 x 1080 px

9.7”- 2048 × 1536 px

5.5″- 1440 x 2560 px

23.8”- 3840 × 2160 px

9.7”- 2048 x 1536 px

5.5″- 2560 x 1440 px**

23.8″- 3840 x 2160 px**

14″- 3840 x 2160 px**

7.9 x 3.9 x 7.9 in

7.7 x 5.8 x 9.8 in

4.8 x 2.7 x 6.3 in

18.5 x 9.4 x 13.4 in

7.7 x 5.8 x 9.8 in

4.7 x 2.7 x 6.3 in

20.1 x 11 x 13.8 in

12 x 6.9 x 7.9 in

*Printer no longer on sale

**Backlit screen technology introduced

Evolution of our 3D Printers

Printer Name  |  Year Released  |  LCD Screen  |  Build Volume

1) LC10*  |  2016  |  10″- 1920 x 1080 px  | 7.9 x 3.9 x 7.9 in

2) LCHR*  |  2017  |  9.7”- 2048 × 1536 px  | 7.7 x 5.8 x 9.8 in

3) LC Precision*  |  2017  |  5.5″- 1440 x 2560 px  | 4.8 x 2.7 x 6.3 in

4) LC Pro*  |  2017  |  23.8”- 3840 × 2160 px  | 18.5 x 9.4 x 13.4 in

5) LC HR2* |  2018  |  9.7”- 2048 x 1536 px  | 7.7 x 5.8 x 9.8 in

6) LC Precision 1.5 *  |  2018  |  5.5″- 2560 x 1440 px**  | 4.7 x 2.7 x 6.3 in

7) LC Magna  |  2019  |  23.8″- 3840 x 2160 px**  | 20.1 x 11 x 13.8 in

8) LC Dental  |  2020  |  14″- 3840 x 2160 px** | 12 x 6.9 x 7.9 in

*Printer no longer on sale

**Backlit screen technology introduced

Enabling the factories of the future

Our technologies are enabling the factories of the future. Whether you are looking to integrate additive manufacturing into your existing operation, or you are seeking an outsourcing partner we have a solution for you.
