Largest LCD 3D printer
Increase throughput with a build volume of 20.1 x 11 x 13.8″
Rapid printing speeds
13.3mm per hour enabling large volumes of parts to be printed quickly.
Printed at 100μm
Highly accurate
4K LCD screen ensuring accuracy across the entire platform
Hanifeh Zarezadeh, 3D Product Manager
Introduction to LC Magna
Easy and simple workflow
1. CAD files are loaded into Photocentric Studio and prepared for printing with a few clicks.
2. Simple printer set up to convert files into physical dental models’ layer by layer.
3. Printed parts are washed removing excess resin.
4. Parts are cured and ready for use.
Large scale production at a fraction of the cost with high quality materials
Magna’s large build volume and high-resolution screen delivers the optimal large format printing experience. Our 3D printing resin portfolio has been optimised and because we manufacture everything from the building-blocks upwards, we can provide the most cost-effective model costs.
- Connectors
- Hoover Attachments
- Dental Models
- Glasses
- Motorbike Engine
- Pens
- Investment Casting
- Model Figurines
$0.57
Cost per electronic housings (375 parts in total – 3 parts per housing)
Accuracy- 100μm (Over 90% of scanned data within +/- µm)
Print Time- 4 hrs
Weight- 1.01kg
Material- Daylight Magna Hard | $357 per 5kg
Download TDS | Buy Now
$2.28
Avg cost per attachment (67 parts on platform. Full platform cost £109.20)
Accuracy- 100μm (Over 90% of scanned data within +/- µm)
Print Time- 9 hrs 30 mins
Weight- 1.82kg (19% supports)
Material- Daylight Magna Durable | $420 per 5kg
Download TDS | Buy Now
$1.43
Cost per dental model (48 per platform)
Accuracy- 100μm (Over 90% of scanned data within +/- µm)
Print Time- 90 minutes
Weight- 576g (12g per arch)
Material- Daylight Magna Dental | $420 per 5kg
Download TDS | Buy Now
$1.04
Cost per glasses (36 per platform)
Accuracy- 100μm (Over 90% of scanned data within +/- µm)
Print Time- 3 hours
Weight- 500g (13.8g per glasses)
Material- Daylight Magna Hard | $357 per 5kg
Download TDS | Buy Now
$210
Cost of motorbike engine parts
Accuracy- 100μm (Over 90% of scanned data within +/- µm)
Print Time- 15 hrs
Weight- 3kg
Material- Daylight Magna High Tensile | $420 per 5kg
Download TDS | Buy Now
$0.21
Cost per pen
Accuracy- 100μm (Over 90% of scanned data within +/- µm)
Print Time- 12 hrs
Weight- 2kg (3g per pen)
Material- Daylight Magna Concept | $420 per 5kg
Download TDS | Buy Now
$32.84
Cost of full platform
Accuracy- 100μm (Over 90% of scanned data within +/- µm)
Print Time- 9 hrs 10 mins
Weight- 391g
Material- Daylight Magna Translucent | $420 per 5kg
Download TDS | Buy Now
$1.75
Cost per model
Accuracy- 100μm (Over 90% of scanned data within +/- µm)
Print Time- 18 hrs
Weight- 750g
Material- Daylight Magna Concept | $420 per 5kg
Download TDS | Buy Now
Professional, reliable plug-n-play technology
Built to deliver consistent results over time LC Magna is manufactured in the UK using the highest engineered materials possible, setting new standards in printer quality and reliability.
1) Quick Release Clamps
Designed to enhance user experience the vat clamps make it easier to lock the resin vat in place.
2) Vat
Built in handles, pouring spouts and etched depth gauge enhance user experience and reduce wastage.
3) 4K Ultra High Definition Display
Delivers accuracy previously unachievable with large format (SLA) print solutions. xy pixel pitch of 137 micron will deliver higher resolution due to benefits of anti-aliasing. Scanned accuracy of +/- 100 microns can be obtained across the bed.
4) Large Build Volume
20.1 x 11 x 13.8″ is the largest commercially available LCD 3D printer. LC Magna suits a variety of applications and different industries.
5) Peel Release Technology
Our patented blow-peel technology all but eliminates the forces that come into play with large build volumes and has been stress tested with the most demanding 15Kg solid builds.
6) GUI
The 7″ touch screen interactive interface gives full functionality and real time user information on print status and function. Network/Wi-Fi connectivity built in.

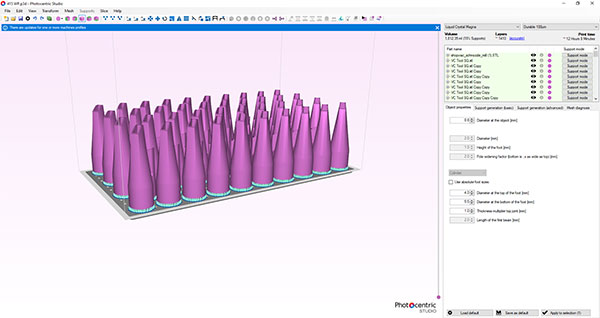

Powerful and intuitive software
Compatible with the majority of file formats such as stl, amf and obj. Photocentric Studio gives you the tools to easily prepare your print files.
Perfect finish to your prints
Our specialised wash and cure process delivers optimised properties maintaining accuracy and consistency.
Learn how LC Magna is changing the way companies operate with 3D Printing.
Smilelign & S4S
Aligner Manufacturer
Smilelign and S4S are major players in the dental aligners in the UK. They had tried almost every manufacturer of 3D printers to meet their requirements for reliability before deciding upon Magna.
Opro
Mouthguard Manufacturer
Opro are the world’s largest custom mouthguard manufacturer, they needed to digitise their model manufacturing process so they switched over to Magna’s increased production and took cost out.
Xkelet
Orthotic Manufacturer
The powerful alliance of Xkelet and Photocentric has seen the creation of an advanced solution to traditional orthotics; one which is revolutionising the treatment of damaged bones
Bridge Dental Laboratory
Dental Laboratory
Bridge Dental were experiencing a rapid growth in demand for their clear aligners. In late 2019 they purchased their first magna and began repetable mass manufacture of models.
As part of our on-going operation at eXceed, we routinely test printed models from new 3D printers to ensure compatibility with our aligner-design process. We have recently tested 3D prints produced by the Photocentric Magna and were thoroughly impressed with their accuracy and quality, when measured against our standard calibration models. The Magna models ranked very high amongst all printed 3D arches we have ever experimented with.
LC Magna is a supported printer option in 3shape’s Orthodontics System 2020.1.
This listing is specifically for the creation of aligners.
The Creation of Magna Printer Farm
The next phase of our mass manufacture journey
To supply 7.7 million shields to the NHS, we have designed and installed a purpose-built factory currently housing 45 Magna printers. We are making over 50,000 3D printed components every day.
